Hp Ap861a 605474-001 P2000 1tb 6g Sas 7.2k Lff 3.5

HP P2000 1TB 3.5-inch Serial Attached SCSI (SAS) LFF 6G

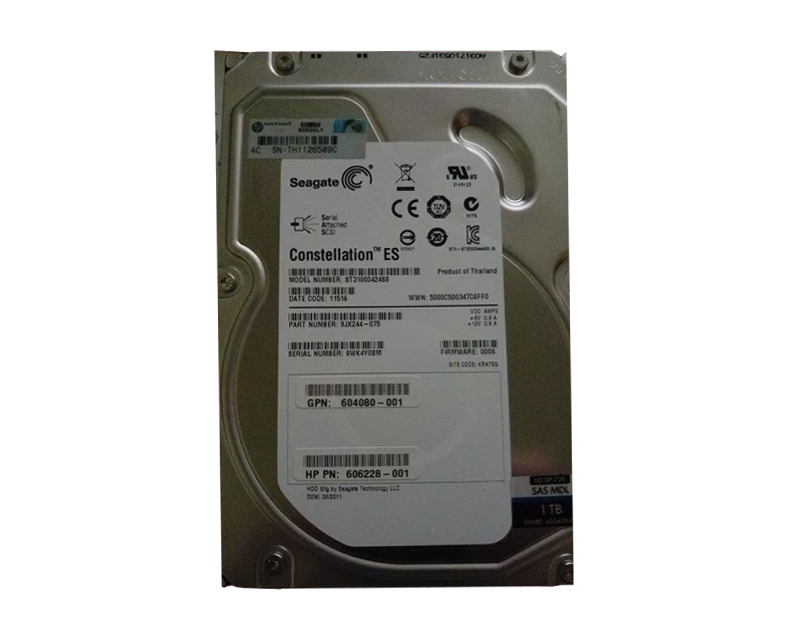

Dual Port Midline (MDL) Hot-Plug 7.2K MSA Hard Drive in HPE MSA2 drive tray with interposer connector (as pictured)
For the HPE MSA 1040/2040 SAN Storage Array
Genuine HPE serial number and MSA firmware

Part Number(s)
Option Part# AP861A
Spare Part# 605474-001

Overview:

HP MSA2 / MSA2000 controller enclosures and large form factor expansion enclosures accept unique HPE SAS disk drive modules with different firmware and different trays than other HPE storage arrays and Proliant servers. The disk drives have SAS interposers attached to the back which convert the native dual port SAS interface to an SCA-40 connector. While this SCA-40 connector has the same shape as a Fibre Channel (FC) connector, the drives are NOT utilizing the FC protocol. If you look closely at the interposer, the circuitry is rather simplistic and no bridge / translator chip is attached. The interposer is, more or less, acting as a signal filter and port relocator to connect to the MSA2's proprietary backplane.

Specifications:

Category StorageWorks HardDrive
Sub-Category 7.2K
Generation SAS MSA2
Part Number 605474-001
Products ID 475050
Type Hard Drive - Hot-Plug
Capacity 1TB
Interface Type Serial Attached SCSI
Spindle Speed 7200RPM
Ports Dual Port
Speed 6GB/s
