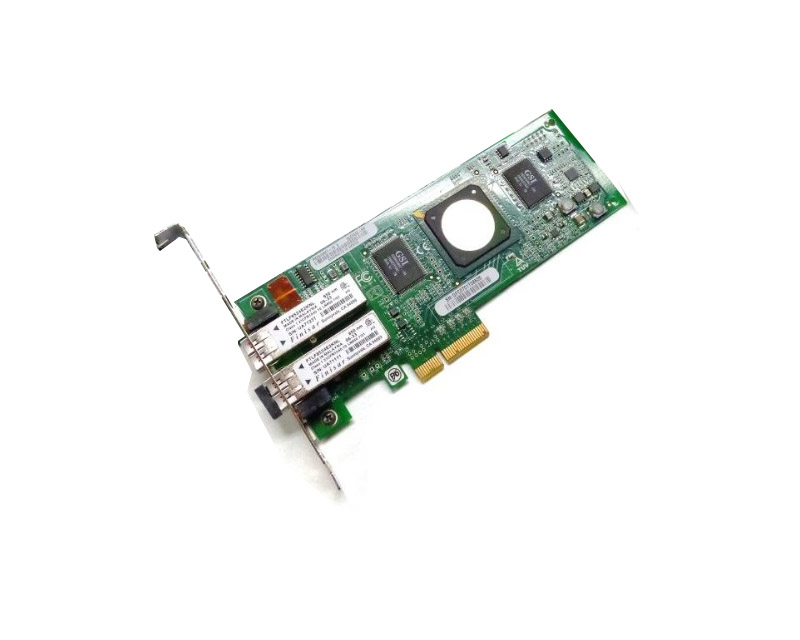

Placa Hb Fibra Fiber Chanel Q Logic 2462 2 Portas Fibra 4 Gb

Description QLogic QLE 2462 Series PCI Express 2462// 2 PORTA FIBRA 4 GB QLogic SANblade QLE2462 Dual-Port PCIe-to-4Gbps Fibre Channel Adapter O QLE2462 4Gb adaptadores oferecem níveis sem precedentes de desempenho, escalabilidade e confiabilidade. Os adaptadores oferecem funcionalidade de rede exclusivo, incluindo Inteligente Intercalado iiDMA), DMA (DMA (dupla leitura DRDMA), e áreas de protecção sobrepostas (OPD). A virtualização no nível de porta, Fibre Channel QLogic 4Gb suportam N_Port ID Virtualization (NPIV) , permitindo que várias N_Port ID para compartilhar a mesma física porta de canal de fibra. Physical Specifications Ports Dual 4Gbps Fibre Channel Form factor Low-profile PCIe card (6.6 in. × 2.54 in Environment and Equipment Specifications Airflow No airflow required Power Consumption 6.5 Watts (maximum) Operating Temperature 0°C/32°F to 55°C/131°F Storage Temperature –20°C/–4°F to 70°C/158°F Relative Humidity 10% to 90% (non-condensing) Storage Humidity 5% to 95% Cable distances 1Gbps: 500 meters 50/125 μm fiber, 300 meters 62.5/125 μm fiber 2Gbps: 300 meters 50/125 μm fiber, 150 meters 62.5/125 μm fiber 4Gbps: 150 meters 50/125 μm fiber, 70 meters 62.5/125 μm fiber Fibre Channel Specifications Data rate 4/2/1Gbps auto-negotiation (4.2480/2.1240/ 1.0625Gbps) Performance 150,000 IOPS per port Topology Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port) Logins Support for F_Port and FL_Port login: 2,048 concurrent logins, and 2,048 active exchanges Class of service Class 2 and 3 Protocols FCP (SCSI-FCP), FC-TAPE (FCP-2) Compliance SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) Tools and Utilities Management tools QConvergeConsole: a unified management tool (GUI and CLI) for Fibre Channel Device utilities Utilities for flashing bootcode Linux® scripting tools Boot support BIOS, EFI, FCode APIs SNIA HBA API V2, SMI-S, FDMI Operating systems Microsoft® Windows Server®, XP Professional, Vista®; Red Hat® Linux; Novell® SLES, NetWare®; VMware® ESX™/ESXi; Oracle® Solaris®, Linux; Citrix® XenServer™; Apple Mac OS® Agency Approvals EMI and EMC US: FCC Part 15, Class B Canada: Industry Canada ICES-003, Class B Safety UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J PERFEITO ESTADO E FUNCIONAMENTO

Emitimos Nota Fical Eletrônica

O produto pode ser retirado na loja em Brasília
Aceitamos cartões Visa/ Mastercard/ Dinners e divimos em 3x sem juros
Visite mais produtos
Tenho anúncios com grande variedade de servidores, roteadores, switchs, racks, no-breaks e tudo para TI.
