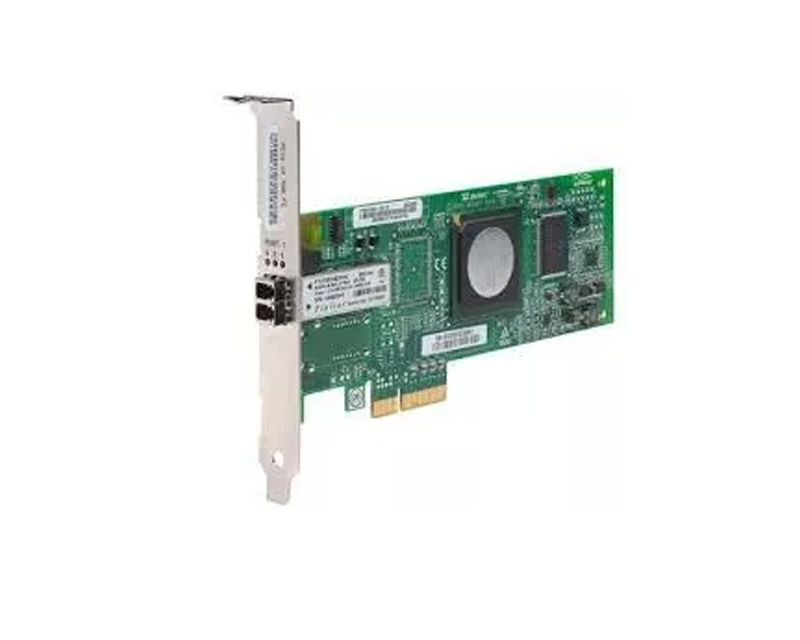

Placa Hba Fibra Fiber Chanel Q Logic 2460 1 Porta Fibra 4 Gb

Description

orts

Single 4Gbps Fibre Channel

Form factor

Low-profile PCIe card
(6.6 in. × 2.54 in.)

Environment and Equipment Specifications

Airflow

No airflow required

Power Consumption

5 Watts (maximum)

Operating Temperature

0°C/32°F to 55°C/131°F

Storage Temperature

–20°C/–4°F to 70°C/158°F

Relative Humidity

10% to 90% (non-condensing)

Storage Humidity

5% to 95%

Cable distances

  • 1Gbps: 500 meters 50/125 μm fiber, 300 meters 62.5/125 μm fiber
  • 2Gbps: 300 meters 50/125 μm fiber, 150 meters 62.5/125 μm fiber
  • 4Gbps: 150 meters 50/125 μm fiber, 70 meters 62.5/125 μm fiber

Bus interface

PCI Express

Memory

1MB SRAM per port, 1MB flash (SPI), and 2KB NVRAM (SPI)

Hardware platforms1

IA32 (x86), IA64, IEM64T, AMD Opteron™ 64, Sun™ SPARC®, Apple® G5 (Xserve® and Power Mac®)

Compliance

PCI Express Base Specification, revision 1.0a, PCI Express Card Electromechanical Specification, revision 1.0, PCI Bus Power Management Interface Specification, revision 1.1

Fibre Channel Specifications

Data rate

4/2/1Gbps auto-negotiation (4.2480/2.1240/ 1.0625Gbps)

Performance

150,000 IOPS per port

Topology

Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)

Logins

Support for F_Port and FL_Port login: 2,048 concurrent logins, and 2,048 active exchanges

Class of service

Class 2 and 3

Protocols

FCP (SCSI-FCP), FC-TAPE (FCP-2)

Compliance

SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)

Tools and Utilities

Management tools

QConvergeConsole: a unified management tool (GUI and CLI) for Fibre Channel

Device utilities

  • Utilities for flashing bootcode
  • Linux® scripting tools

Boot support

BIOS, EFI, FCode

APIs

SNIA HBA API V2, SMI-S, FDMI

Operating systems

Microsoft® Windows Server®, XP Professional, Vista®; Red Hat® Linux; Novell® SLES, NetWare®; VMware® ESX™/ESXi; Oracle® Solaris®, Linux; Citrix® XenServer™; Apple Mac OS®

Agency Approvals

EMI and EMC

US: FCC Part 15, Class B
Canada: Industry Canada ICES-003, Class B

Safety

UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J
